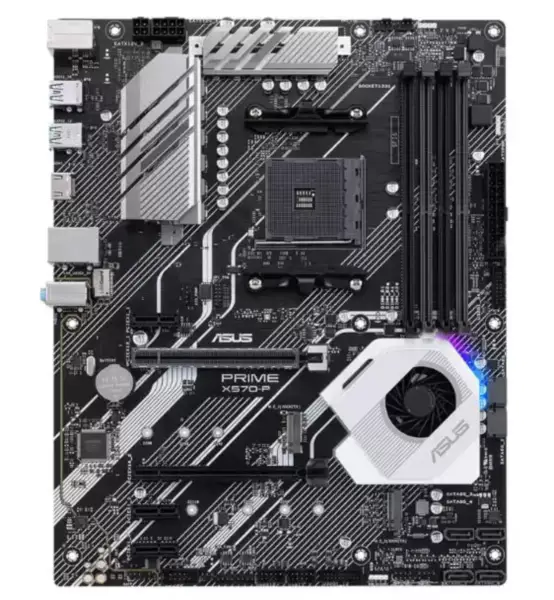

Asus PRIME X570-P Scheda madre AMD socket AM4

Immagini

Specifiche tecniche

Marchio: Asus
Item Model: PRIME X570-P
Chipset: AMD X570
CPU Type: AMD 3th/2th-GEN AMD Ryzen, 2nd/1st-GEN AMD Ryzen WITH Radeon Vega Graphics
Socket della CPU: Socket AM4
Con CPU: no
Banco RAM: 4×DDR4 DIMM
Capacità massima di memoria: 128 GB
PCI-E type: PCI-E 4.0,
3rd Gen AMD Ryzen Processor
1×PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen Processor
1×PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processor
1×PCIe 3.0 x16 (x8 mode)
AMD X570 Chipset
1×PCIe 4.0 x16 (max x4 mode)
3×PCIe 4.0 x1
Slot di memoria:
3rd Gen AMD Ryzen processor:
1×M.2_1 socket 3, supports M Key, supports 2242/2260/2280 (PCIE 4.0 x4 and SATA mode) storage devices
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with RadeonVega Graphics processor:
1×M.2_1 socket 3
AMD X570 chip:
1×M.2_1 socket 3
6×SATA III interface
Interfaccia disco rigido: SATA
FSB / HT:Mhz
Interfaccia I/O:
3rd and 2nd Generation AMD Ryzen/2nd and 1st Generation AMD Ryzen with Radeon Vega Graphics processors:
2×USB3.2 Gen2 ports
3rd and 2nd Generation AMD Ryzen/2nd and 1st Generation AMD Ryzen with Radeon Vega Graphics processors:
2×USB3.2 Gen1 ports
AMD X570 chipset:
2×USB3.2 Gen2 ports
4×USB3.2 Gen1 ports
5×USB 2.0 ports
Porte: HDMI
Fattore di forma: ATX
Dimensioni: 30,5×24,4 cm
Fattore di forma: CEB
Applicazione: Desktop
Pacchetto: Pacchetto antistatico
Condizioni: Usato, Testato
